Gravel
Crowbar 50

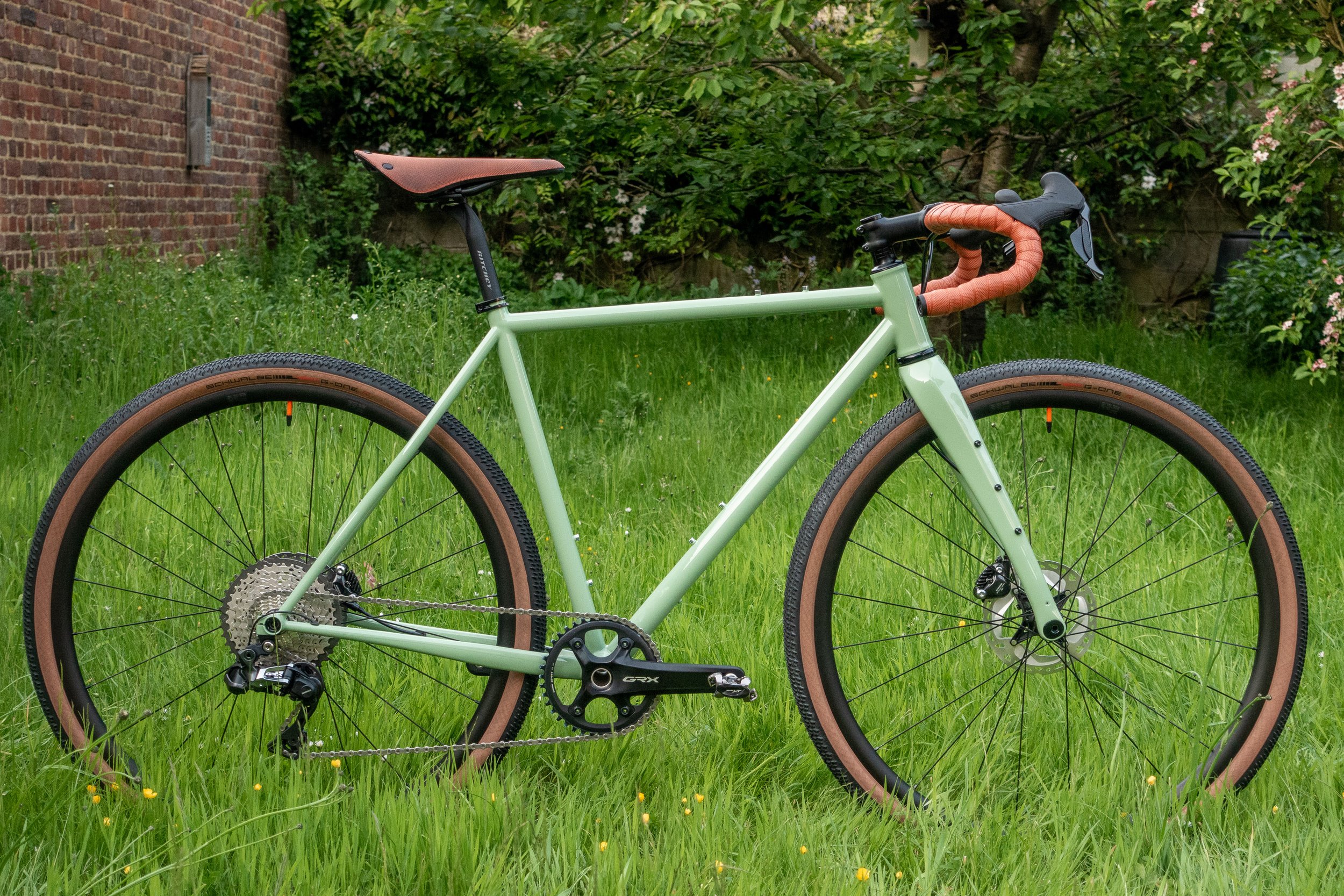

The Crowbar 50 is our versatile steel gravel bike. This model was designed to be stable and comfortable on a variety of surfaces, from the roughest gravel tracks to perfectly smooth tarmac. It is ideally suited for long rides and bikepacking adventures.
The frame can be fully custom built, or you can choose a standard size.
For the finishing, we use components that suit your frame and your budget. Some favourite brands: Ritchey, Brooks, DT Swiss, Cane Creek, Wolf Tooth, Bikone, Schwalbe, Panaracer.
2XS

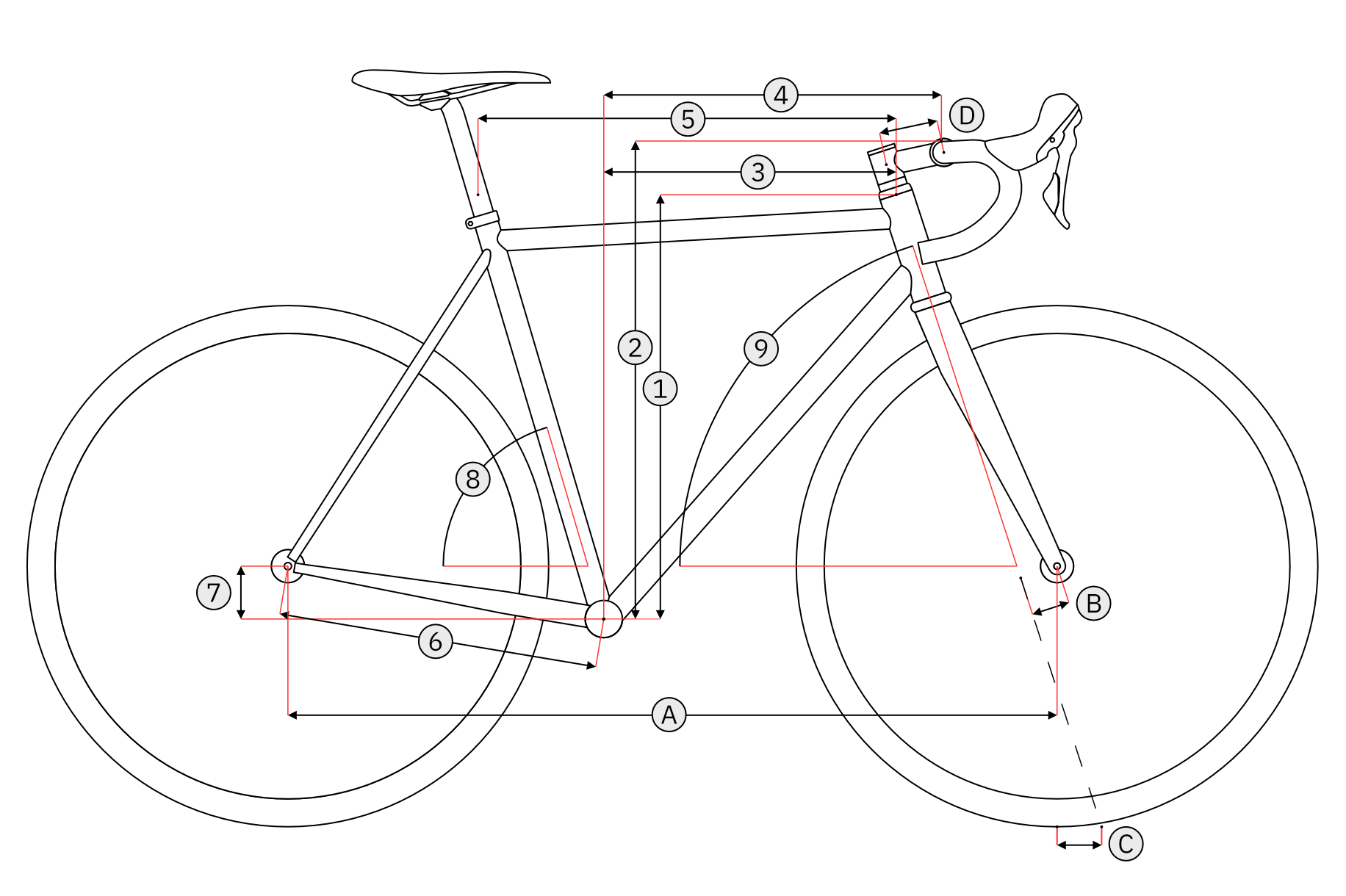

Stack (1) — 527 mm
Stack to handlebar (2) — 597 mm
Reach (3) — 371 mm
Reach to handlebar (4) — 412 mm
Top tube length (5) — 527 mm
Chain stay length (6) — 436 mm
BB offset (7) — 72 mm
Seat tube angle (8) — 73.5 °
Head tube angle (9) — 70.5 °
Wheelbase (A) — 1017 mm
Fork offset (B) — 47 - 52 mm
Fork trail (C) — 71 mm
Stem length (D) — 60 mm
Crank length — 165 mm
XS
Stack (1) — 537 mm
Stack to handlebar (2) — 609 mm
Reach (3) — 377 mm
Reach to handlebar (4) — 428 mm
Top tube length (5) — 536 mm
Chain stay length (6) — 436 mm
BB offset (7) — 72 mm
Seat tube angle (8) — 73.5 °
Head tube angle (9) — 71 °
Wheelbase (A) — 1022 mm
Fork offset (B) — 47 - 52 mm
Fork trail (C) — 67 mm
Stem length (D) — 70 mm
Crank length — 165 mm
S
Stack (1) — 556 mm
Stack to handlebar (2) — 628 mm
Reach (3) — 393 mm
Reach to handlebar (4) — 444 mm
Top tube length (5) — 558 mm
Chain stay length (6) — 436 mm
BB offset (7) — 72 mm
Seat tube angle (8) — 73.5 °
Head tube angle (9) — 71.5 °
Wheelbase (A) — 1040 mm
Fork offset (B) — 47 - 52 mm
Fork trail (C) — 64 mm
Stem length (D) — 70 mm
Crank length — 170 mm
M
Stack (1) — 578 mm
Stack to handlebar (2) — 651 mm
Reach (3) — 398 mm
Reach to handlebar (4) — 460 mm
Top tube length (5) — 569 mm
Chain stay length (6) — 436 mm
BB offset (7) — 72 mm
Seat tube angle (8) — 73.5 °
Head tube angle (9) — 72 °
Wheelbase (A) — 1047 mm
Fork offset (B) — 47 - 52 mm
Fork trail (C) — 61 mm
Stem length (D) — 80 mm
Crank length — 170 mm
L
Stack (1) — 599 mm
Stack to handlebar (2) — 674 mm
Reach (3) — 404 mm
Reach to handlebar (4) — 476 mm
Top tube length (5) — 581 mm
Chain stay length (6) — 436 mm
BB offset (7) — 72 mm
Seat tube angle (8) — 73.5 °
Head tube angle (9) — 72.25 °
Wheelbase (A) — 1057 mm
Fork offset (B) — 47 - 52 mm
Fork trail (C) — 59 mm
Stem length (D) — 90 mm
Crank length — 170 mm
XL
Stack (1) — 619 mm
Stack to handlebar (2) — 694 mm
Reach (3) — 421 mm
Reach to handlebar (4) — 493 mm
Top tube length (5) — 604 mm
Chain stay length (6) — 436 mm
BB offset (7) — 72 mm
Seat tube angle (8) — 73.5 °
Head tube angle (9) — 72.5 °
Wheelbase (A) — 1078 mm
Fork offset (B) — 47 - 52 mm
Fork trail (C) — 57 mm
Stem length (D) — 90 mm
Crank length — 172.5 mm
Custom
Adjusted to the millimetre to your preferences. Based on a professional bike fit and/or your current bike.
Apart from any bike fit cost, a handmade custom bike is no more expensive than choosing a standard size.
Build examples
Base
- Steel frame based on Columbus Zona and Life
- Carbon fork
- Semi-integrated headset
- T47 bottom bracket
- Aluminium stem
- Aluminium seatpost
- Columbus seatpost clamp
- Thru-axles front and rear
- Frame painted in one colour
Shimano GRX 820 12-speed
- Everything from "Base"
- Shimano GRX 12-speed 1X mechanical groupset with external cable routing
- Aluminium handlebar
- Brooks C17 or C15 saddle
- DT Swiss G 1800 wheelset (700c)
- Panaracer Gravelking SK tyres
Shimano GRX 825 12-speed Di2
- Everything from "Base"
- Shimano GRX 12-speed 2X Di2 groupset
- Aluminium handlebar
- Brooks C17 or C15 saddle
- DT Swiss GR 1600 wheelset (700c)
- Schwalbe G-One R Pro tyres
